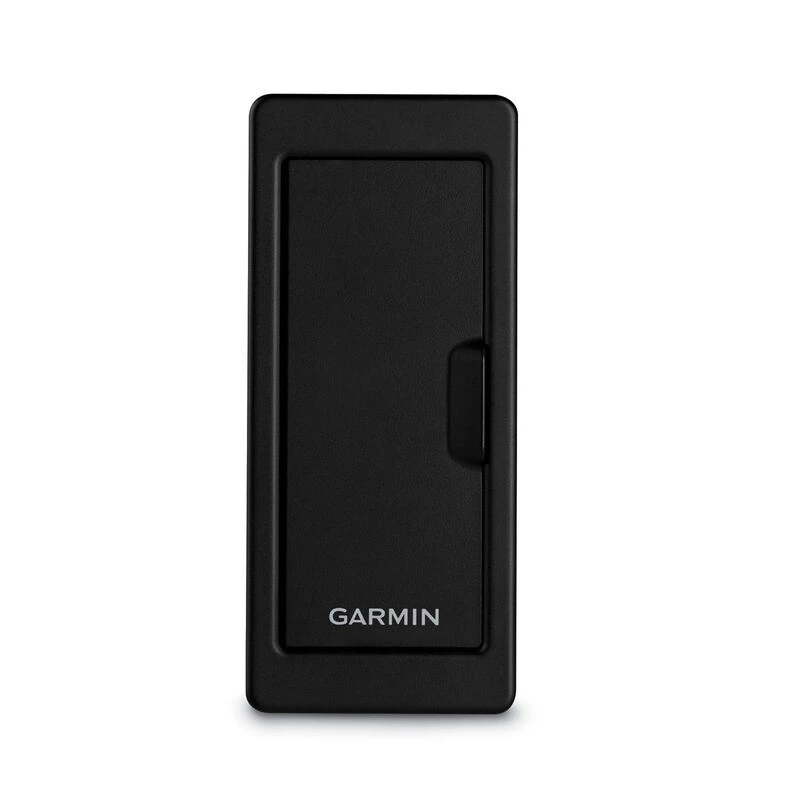

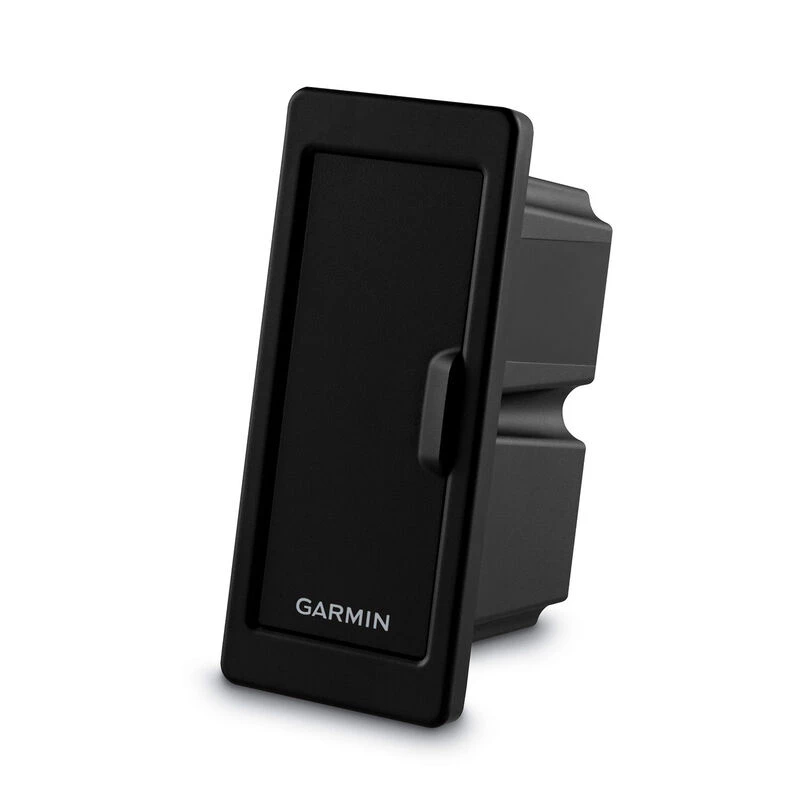

GARMIN Network Cables SD Card Reader

Provide convenient remote mounting and a single access point for 2 SD™ card slots for mapping with our Garmin Card Reader. A waterproof, magnetic door allows the card reader to be mounted horizontally or vertically – and you can add multiple card readers for additional access points.

• Dimensions (W×H×D): 2 1/8″ x 4 7/8″ x 3 3/16″ (54.3 x 124.1 x 81.2 mm)
  Weight: 6.3 oz. (178.6 g)
• Temperature range: From 5° to 158°F (from -15° to 70°C)
• Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input power: 10-35 Vdc
• Fuse: 7.5 A, 42 V fast-acting
• Maximum power usage at 10 Vdc: 2.4 W
• Typical current draw at 12 Vdc: 80 mA
• Maximum current draw at 12 Vdc: 240 mA
• Compass-safe distance: 36″ (915 mm)

What’s in the Box:

• Garmin Card Reader
• Mounting hardware
• Power cable
• Network cable (6 ft)
• Documentation
