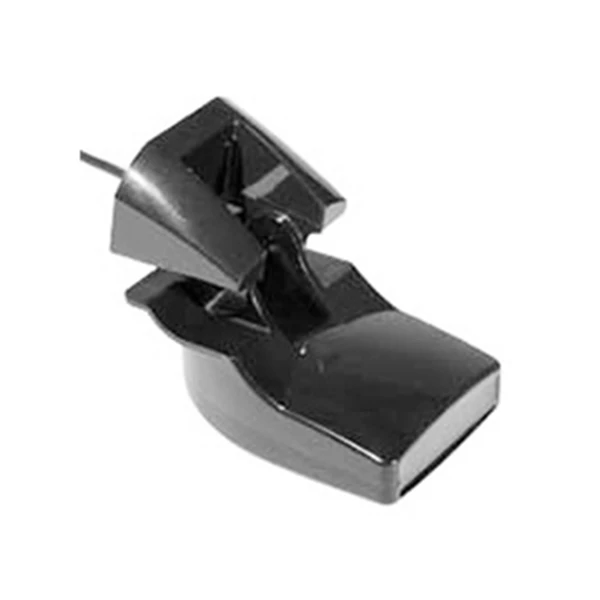

GARMIN Transducers Transom Mount Dual Frequency Transducer

Replaces the dual frequency transducers included with many Garmin units.

The 500W 8-pin transducer has a maximum depth of 1,500′; an operating frequency of 50 and 200kHz; a beamwidth of 40° and 10°; and mounts on a 0° to 70° transom. Transducer kit comes with installation instructions. Compatible with Garmin GSD 24.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required. The 6-pin transducer, 010-10272-00, is preferred.

Specifications

• Style: Transom mount
• Cable Length: 30′(6m)
• Connector: 8-pin
• Transom Angle: 0°-70°
• Monitors: Depth/Temperature
• Material: Plastic
• Transmit Power: 500W (RMS)
• Frequency: 50/200kHz
• Max. Depth: 1,500′
• Beamwidths: 40°/10°
