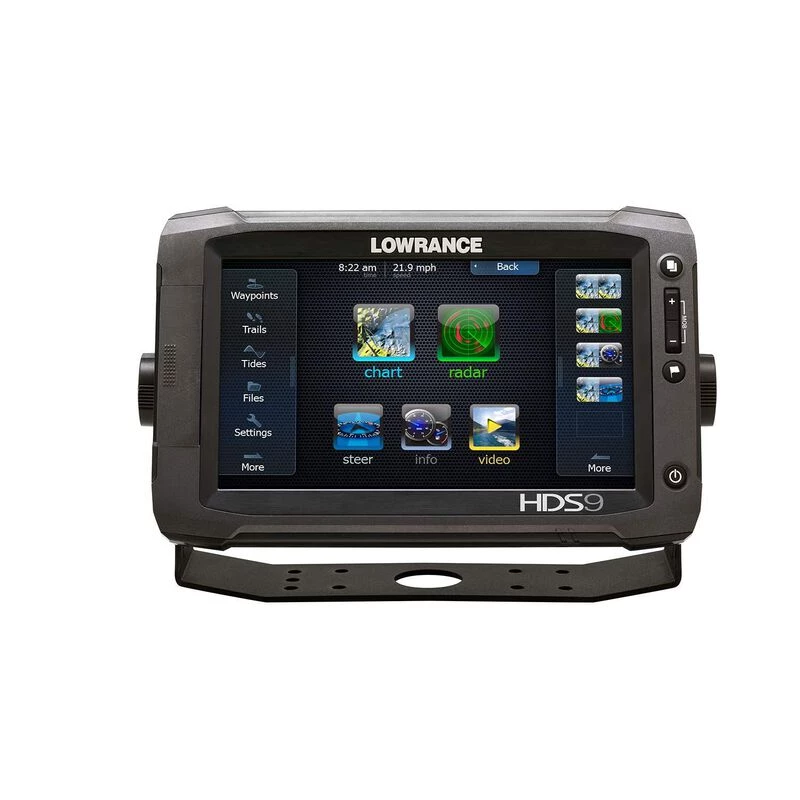

High-definition, 9-inch, widescreen color display with touchscreen functionality for fast and easy operation. Unit is a factory tested and certified demo unit. 83/200 kHzĀ Transom Mounted Transducer included.
Unlock the power of HDS with fewer button presses, making it simple to quickly master advanced features.
The first touchscreen display created with anglers in mind, itās even easy to use in rough conditions. Plus, SolarMAX enhancements allow superior sunlight and wider-angle viewing.
- Easy-to-use touchscreen control: Powerful touchscreen with redesigned menus and five pushbutton controls simplify operation without sacrificing features.
- Built-in, four-channel sonar technologyĀ (Chartplotter/Fishfinder models only): Dedicated StructureScan HD signals for left-, right- and down-looking images, plus Broadband SounderĀ®. Real-time StructureMap® capability allows you to overlay StructureScan® HD sonar imaging data onto your favorite chart for a lifelike underwater view with greater perspective of your boatās position to nearby structure. Overlay DownScan Imaging® onto your Broadband Sounder view for the ultimate fish-and structure-finding display.
- More powerful navigational tools: 3D perspective view with both Insight USA® maps and optional Navionics charts, plus a dual-view option allows you to simultaneously use two maps at once.
- Insight Genesis® compatibility: Make your own map! Create high-definition contours, bottom hardness and more from personalized sonar log recordings on a powerful new Lowrance web-based map creation tool.
- Wireless connectivity:Ā WiFi-1 module compatible via Ethernet, when combined with a GoFreeĀ Wireless app, provides remote viewing and control of HDS Gen2 Touch on the iPhone, iPad and Android devices. Wireless app, provides remote viewing and control of HDS Gen2 Touch on the iPhone, iPad and Android devices.
- Display Type:Ā Color TFT LCD touchscreen, widescreen 16:9
- Screen Size:Ā 9″ diagonal
- Screen Resolution:Ā 800 x 480
- Receiver Type:Ā Internal, high-sensitivity w/WAAS
- Preloaded Cartography:Ā Insight USAĀ®
- Optional Cartography:Ā Navionics
- Transducer:Ā Included
- Transmit Power:Ā Max. 31W (RMS actual) 250W peak
- Max. Depth:Ā 5,000′
- Frequency:Ā 50/200 or 83/200kHz + 455/800kHz
- Data Interface:Ā NMEA 2000, NMEA 0183, Ethernet
- Voltage:Ā 12V DC
- Draw:Ā 0.9A @ 13V DC
- Dimensions:Ā 10 7/16″ W x 6 11/16″H x 3 5/16″ D
- Waterproof Rating:Ā IPX7
Alternate Transducer Options
The HDS-Touch operates eitherĀ 83/200 kHzĀ or 50/200kHz transducers, sold separately. Depending on the style of the transducer, youāll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:Ā
| BB TRANSDUCERS BLUE CONNECTOR | ||||
|---|---|---|---|---|
| Transducer Type | Reading(s) | Power | Material | Model |
| OB/IB Shallow Water w/TempĀ (Primary) | Depth/Temperature | 83/200 kHz | Nylon | 8803595 |
| OB/IB Deep Water w/TempĀ (Primary) | Depth/Temperature | 50/200 kHz | Nylon | 8803603 |
| OB/IB Deep Water w/Speed & TempĀ (Primary) | Depth/Speed/ Temperature | 50/200 kHz | Plastic | 14273866 |
| IB Engines; Shallow or Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Bronze | 11498805 |
| IB Engines; Shallow or Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Plastic | 11498375 |
| Trolling Motor or In-Hull Mount; Shallow Water w/Temp | Depth/Temperature | 83/200 kHz | Nylon | 10856003 |
| Larger Boats; 1KW Deep Water w/TempĀ (Primary) | Depth/Temperature | 50/200 kHz | Bronze | 11259314 |
| | ||||
Ā
| BB Traditional and Down Scan / HDI (High Definition Imaging) Combination Transducers BLUE CONNECTOR | ||||
|---|---|---|---|---|
| Transducer Type | Reading(s) | Power | Material | Model |
| Outboard or Inboard-Outboard; Shallow Water w/Temp | Depth/Temperature | 83/200 455/800KHZ | Ā | 14273965 |
| Outboard or Inboard-Outboard; Deep Water w/Temp | Depth/Temperature | 50/200 455/800KHZ | Ā | 14273957 |
| Inboard Engines; Shallow and Deep Water w/Temp | Depth/Speed/ Temperature | 50/200 455/800 0 | Bronze | 14706600 |
| Inboard Engines; Shallow and Deep Water w/Temp | Depth/Temperature | 50/200 455/800 12 | Bronze | 14706618 |
| Inboard Engines; Shallow and Deep Water w/Temp | Depth/Temperature | 50/200 455/800 20 | Bronze | 14706626 |
| | ||||
What You May Want to Add
| Compatible Cables | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| ST-TBL Speed Temp Sensor | 14272777 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
