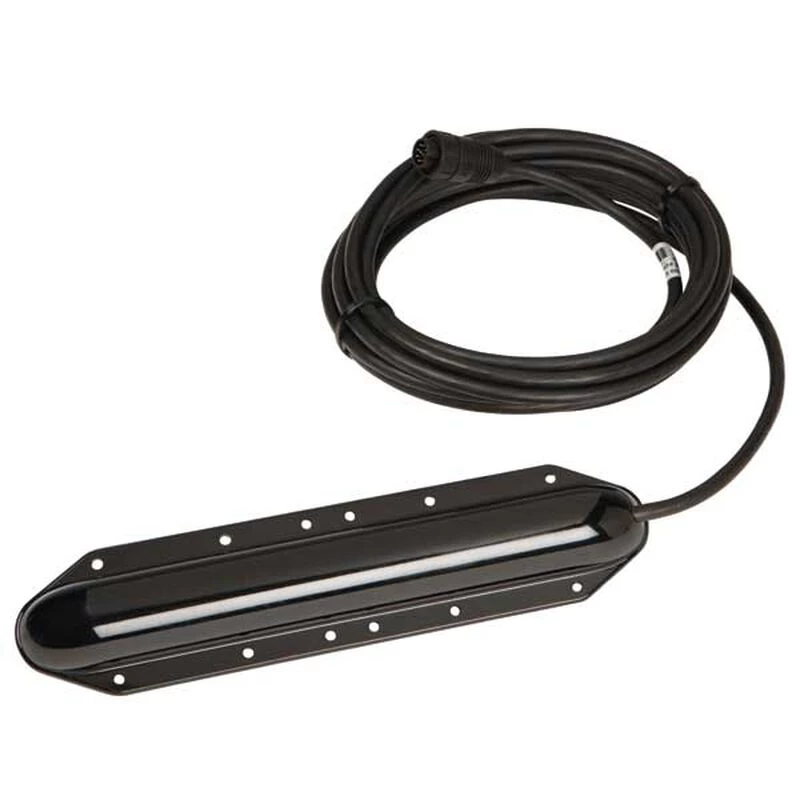

LOWRANCE Transducers LSS-2 StructureScan HD Transducer

Enhanced imaging transducer generates three dedicated signals for photo-like images to the left, right and directly beneath your boat.

Nylon Transom-mount Transducer for LSS-2 StructureScan HD is a low profile, low-drag design with built-in water temp sensor, made for multiple mounting locations—transom, transom step or jackplate.

Specifications

• Style: Transom mount
• Cable Length: 20′ (requires 26mm diameter hole for plug)
• Monitors: Depth and Temperature
• Material: Plastic/stainless steel bracket
• Transmit Power: 500W (RMS)
• Frequency: Enhanced 455/800kHz
• Max. Depth: Sidescan: 600′ @ 455kHz; 200′ @ 800kHz; Downscan: 300′
• Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
• Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
• Dimensions: 10 13/16″L x 2 5/8″W x 2 13/16″H
