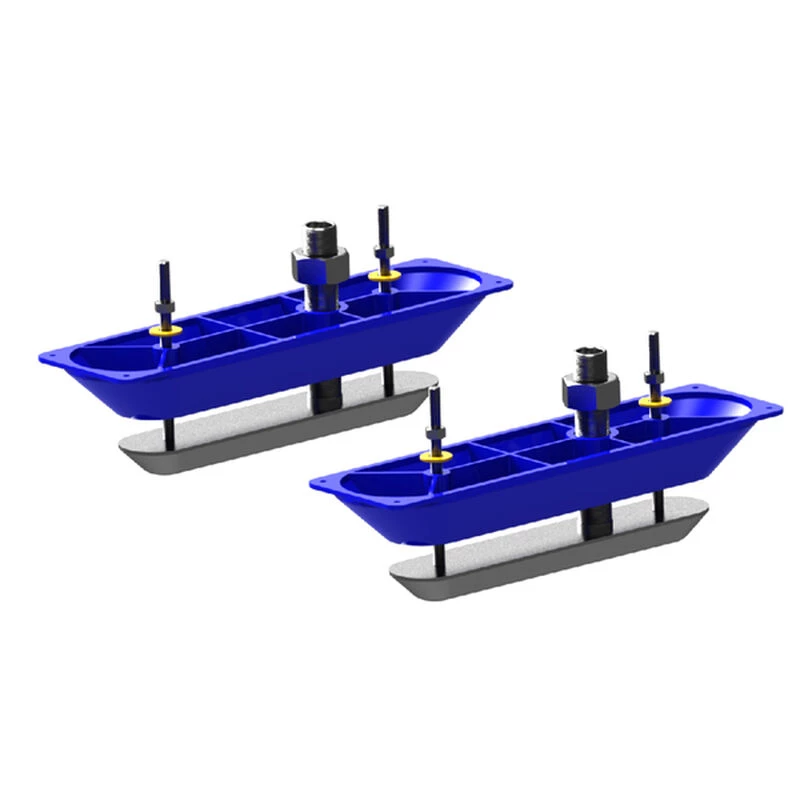

LOWRANCE Transducers StructureScan® HD Thru-hull Dual Frequency SideScan/DownScan Transducer (Pair)

For boats with steep or variable hull deadrise angles.

Twin thru-hull stainless steel transducers for StructureScan^® HD Sonar Imaging provide more range and greater resolution. The kit includes the required Y-cable.

See to both sides and straight down: As with transom-mount LSS-2 StructureScan® HD transducers, the thru-hull stainless steel versions deliver extreme target detail, bottom discrimination and bait and game fish separation at depths to 300′ and a wider range of 600′ side-to-side coverage.

Enhanced dual-frequency array: All StructureScan^® HD transducers are packed with an enhanced dual-frequency element array that operates at 455 and 800kHz.

These sturdy, Airmar^® stainless steel transducers are resistant to the electrical forces in the environment where it will be used. Each features a low-profile design that minimizes drag; provide exclusive three-channel beam, port and starboard SideScan plus DownScan Imaging™ technology. Includes a high-performance fairing block that will give you Structure performance at speeds up to 35mph and feature a 30′ transducer cable.

Specifications

• Style: Two thru-hulls
• Cable Length: 30′ with Y-cable
• Monitors: Depth and Temperature
• Material: Plastic/stainless steel
• Transmit Power: 500W (RMS)
• Frequency: Enhanced 455/800kHz
• Max. Depth: Sidescan: 600′ @ 455kHz; 200′ @ 800kHz; Downscan: 300′
• Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
• Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
