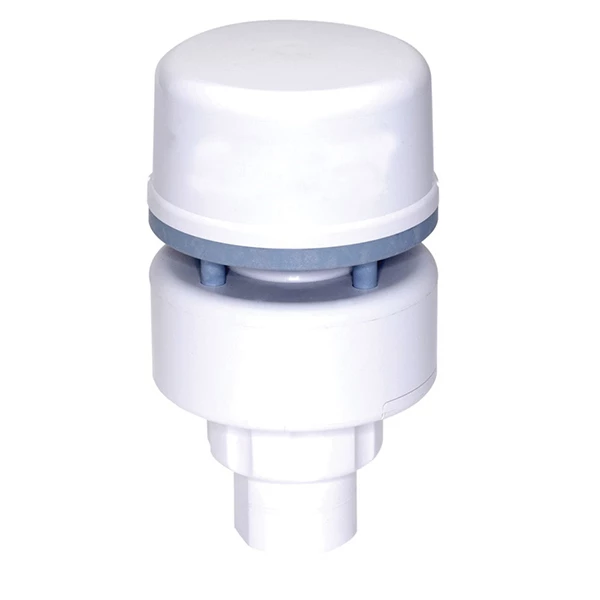

NAVICO Network Sensors 110WX Ultrasonic Wind Sensor

Measures apparent wind speed and angle, barometric pressure, air temperature, relative humidity, calculated dew point, heat index and wind chill temperature.

Whether you are harvesting crops, operating equipment, preparing for bad weather or responding to a hazardous event; understanding the weather is important. The WX Series allows users to make informed decisions based on site specific information, resulting in improved efficiency, reduced risks and overall cost savings.

Key Features

• Removable humidity sensor that is field serviceable
• IPX6 waterproof rating (units with the relative humidity module are IPX4 waterproof rated)
• New power supply featuring a 50% reduction in current draw for use in remote locations that use solar or battery power
• Wider operating voltage range of 9-40 VDC
• Adjustable, unfiltered wind data for monitoring maximum gust conditions
• Output via a single cable (various lengths available) for power and either RS232 (NMEA 0183) or RS422 (NMEA 0183) and CAN BUS (NMEA 2000) data interface
• WeatherCaster™ PC software for viewing and customizing data sentences
• Waterproof housing and cable system
• Fast response time and update rate
• Stable and accurate true wind and heading data in dynamic conditions
• Can be programed to compensate for an installation that is not aligned to the
• front of the boat/vehicle and/or level
• Can be calibrated to compensate for magnetic deviation caused by ferrous
• metals and other electro-magnetic fields
• GPS with WAAS and EGNOS

Weather Information 110WX Provides:

• Wind speed and direction
• Barometric pressure
• Air temperature
• Wind chill
• Ultrasonic wind readings
• Optional relative humidity
