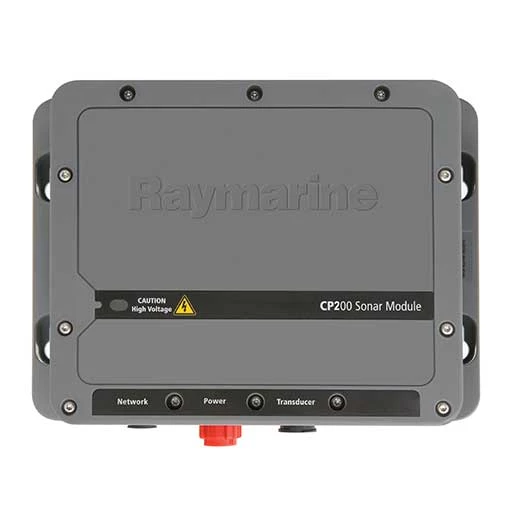

RAYMARINE Black Box Sonar CP200 CHIRP SideVision™ Sonar Module

Expand your underwater horizon with the CP200 CHIRP SideVision™ sonar

The CP200 CHIRP SideVision™ Sonar expands your underwater horizon with crystal-clear, bank-to-bank displays of fish, bait and underwater structure. Engineered with the same CHIRP sonar technology as Raymarine’s DownVision™, the CP200 uses advanced CHIRP signal processing technology to let you see further, see more clearly, and detect more fish than traditional side scanning sonars.

CP200 Sonar Key Features

• Network compatible CHIRP SideVision™ sonar for a-Series, c-Series, e-Series and gS Series multi-function displays
• Multi-sonar compatible: view CHIRP SideVision™ alongside other sources, simultaneously
• See fish, bait and bottom structure at distances up to 600′ horizontally on both sides
• CHIRP signal processing delivers crystal-clear images with amazing detail
• Works seamlessly alongside Raymarine Digital, CHIRP and CHIRP DownVision™ sonar
• Adjustable CPT-200 transducer (sold separately) optimizes performance for shallow or deep water scanning

Experience Visionality™: CP200 delivers side scan sonar imagery so close to reality that Raymarine calls it Visionality™. See amazing photo-like imagery of underwater terrain and man-made objects.

Superior Range Performance: Raymarine CHIRP signal processing delivers high resolution and excellent long range performance. Identify objects and see fish even further, out to 600′ on each side!

CHIRP SideVision™ Technology: Dual independent transducer arrays deliver best-in-class side scan performance using two high-performance transducer arrays with dedicated CHIRP sonar channels. Anglers can choose from three pre-set transducer beam angles. They include a high-angle setting for shallow water applications, and a low-angle setting for deep water applications.

Easy to Network: Connect the CP200 with Raymarine LightHouse II powered multi-function displays, including aSeries, cSeries, eSeries and gS Series systems.

CHIRP SideVision™ and DownVision™ Together: Combine the CP200 with CHIRP DownVision™ for the ultimate in sonar intelligence, giving you a full 180 degree view of your underwater surroundings. Add CHIRP DownVision™ to your network with a CP100 sonar or an a-Series multi-function display (DownVision™ models only)

CP200 Sonar Specifications

• Transducer: Sold separately
• Compatible Displays: a-, c- and e-Series Multi-Function Displays
• Maximum Range: 600′
• Voltage: 12/24V DC
• Power Consumption: 1A peak (5A fuse/breaker), 5.6W max. power consumption
• Dimensions: 8 7/8″L x 6 3/8″W x 2 13/16″D
• Connections: Power (power cable), transducer (9 pin connector), and RayNet network connector
• Waterproof Rating: IPX6 and IPX7
• Warranty: Three years (with product registration)
