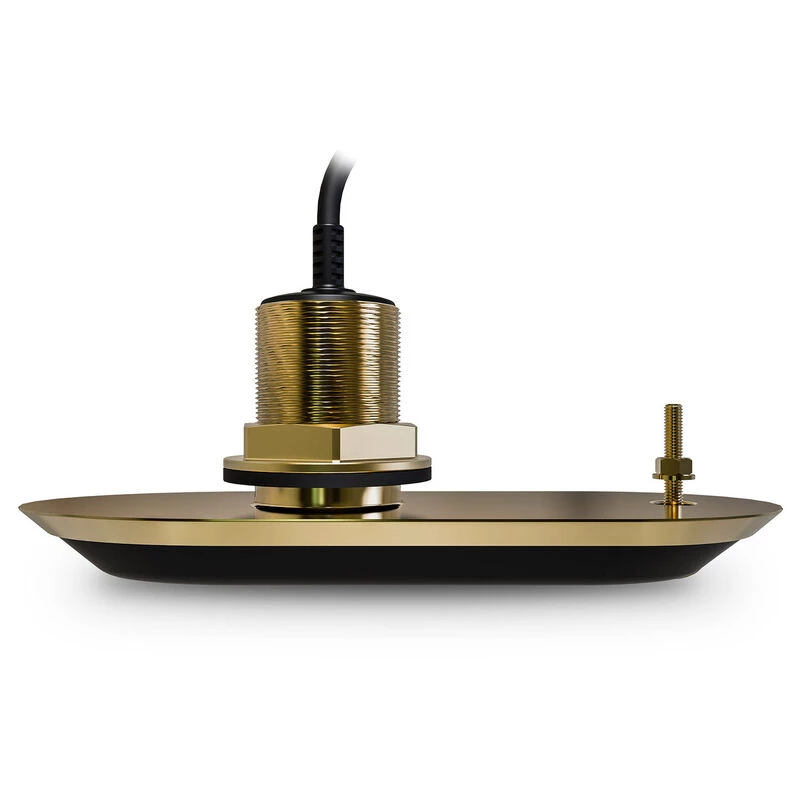

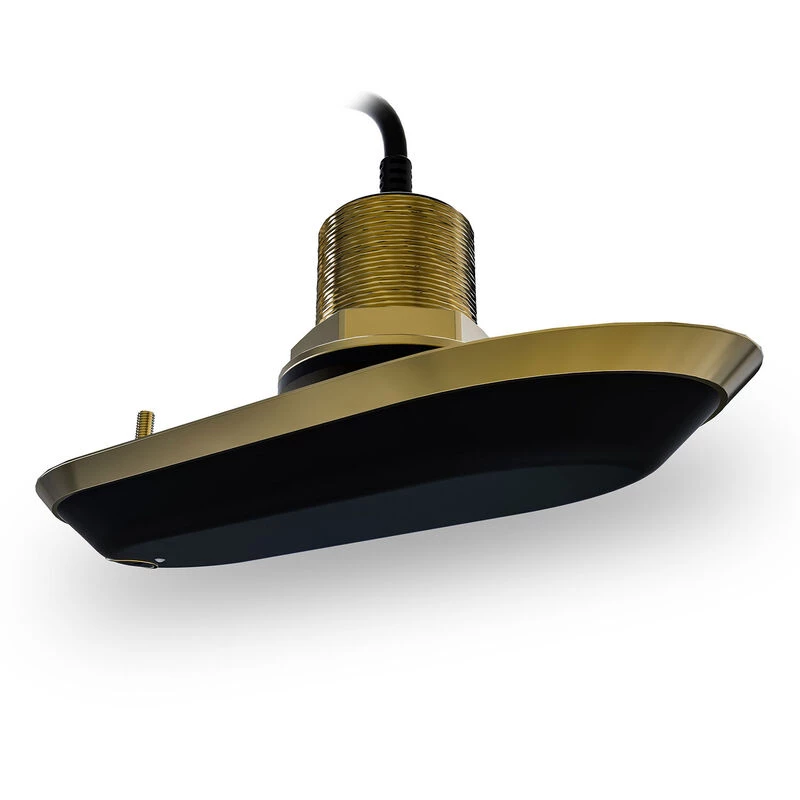

RAYMARINE Transducers RV-200 All-In-One Thru-Hull CHIRP Transducer

RealVision 3D Transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing.

Raymarine’s RV-200 Bronze All-In-One Thru-Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the lifelike clarity of RealVision 3D™ sonar.

Key Features

• Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
• Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
• Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
• Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W  50/200kHz traditional sonar
• The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
• You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering
• Built-in fast response water temperature sensor for quick, accurate readings
• Rugged cast-bronze thru-hull body suitable for fiberglass or wooden hulls
• Transducer elements are arranged with a 0° hull deadrise offset for boats with flat bottoms
• The low-profile design slips effortlessly through the water without causing drag or cavitation
• The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze

Specifications

• Application: Axiom displays
• Style: Thru-hull
• Cable Length: 26’4″(8m)
• Connector: 25-Pin Connector
• Monitors: Depth/Temperature
• Material: Bronze
• Transmit Power: 100W (CHIRP); 600W traditional (RMS)
• Frequency: 50/200kHz traditional; DownVision, SideVision, CHIRP and RealVision 3D
• Deadrise Angle: 0° offset
• Max. Depth: Traditional: 900′; 3D: 300′; CHIRP DownVision: 300′; CHIRP SideVision: 300′
• Beamwidths: 180°
