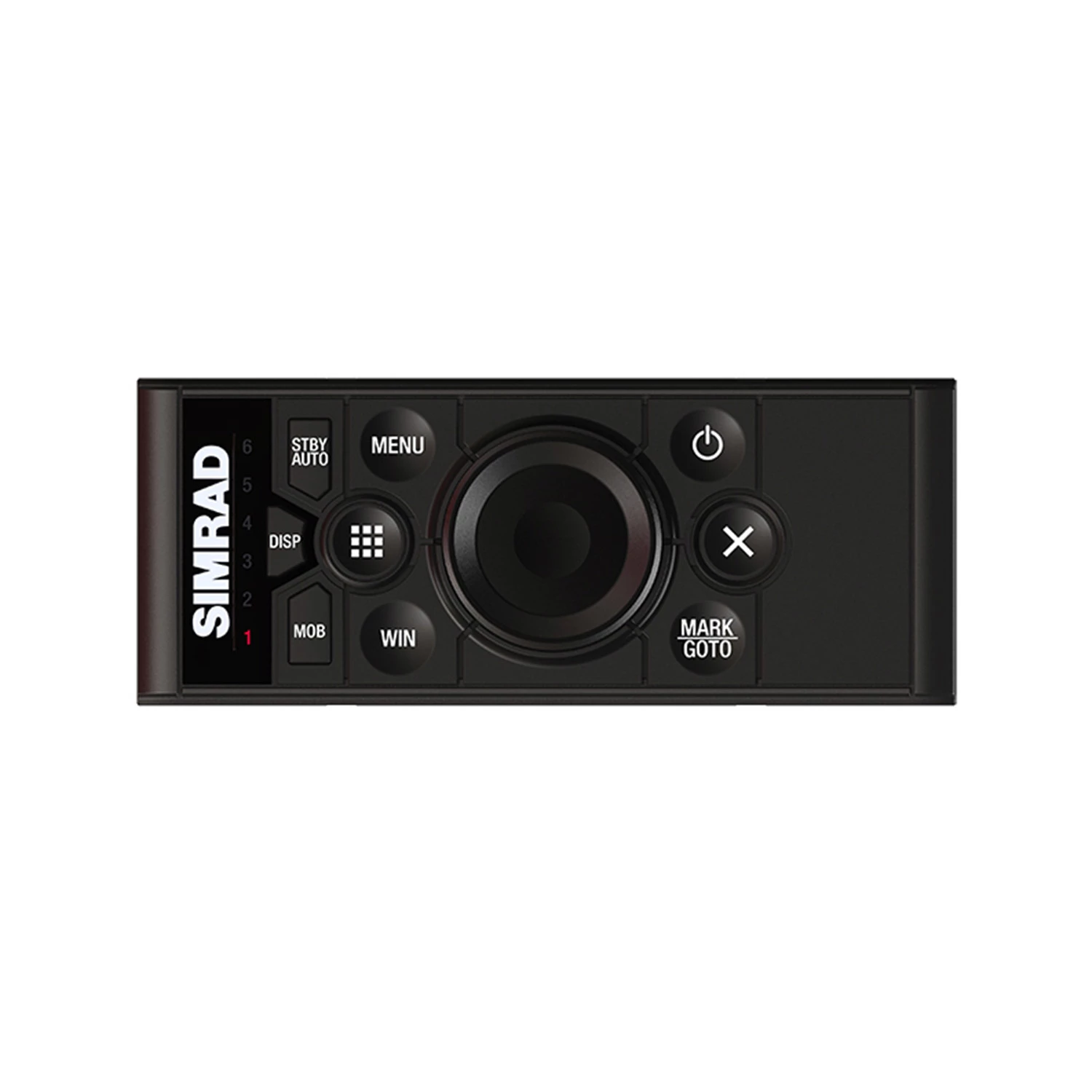

SIMRAD Fixed Mount Gps Remotes OP50 Remote Controller, Landscape View

Manage Multiple Displays

Networked with a single NMEA 2000® connection for both power and control, one OP50 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicators clearly show which display is selected, while a dedicated button cycles quickly through the available displays.

Controls Optimized for Simrad Displays

The OP50 Remote Controller features a keypad specifically designed to operate Simrad multifunction displays efficiently and reliably in all conditions. The controller’s high-quality aluminium dial features a knurled edge for precise control, and built-in cursor functions for easy on-screen navigation. An OP50 can be used to add classic controls to a touchscreen system, as the main controller for a non-touch system, or to give one station total control over multiple Simrad displays.

Easy Mounting in Horizontal or ‘Landscape’ Orientation

The ‘landscape’ OP50 is ideal for installation beneath Simrad MO-series touchscreen or pilothouse monitors, allowing easy control while keeping hands and arms from obscuring the display. Dash mounting provides a slim 8mm profile, while an optional bracket allows total flush-mount installation.

Key features

• Control up to six compatible Simrad multifunction displays
• High-quality aluminium control dial with built-in cursor functions
• Low-profile dash mount, or total flush-mount with optional bracket
• Integrated high-decibel speaker for critical alarms
• Landscape orientation (portrait version also available)
• Narrow design perfect for helm chair arm mounting
• Dash mount with low 8 mm profile
• Zero-profile flush mount with optional bracket
• Quickly switch displays with dedicated button and LED indicators
• Single NMEA 2000® connection
• Dimensions: 2.36″ height x 5.9″ width x 1.75″ depth
• Operating Temperature: -15 to 55 Degrees Celsius (5 to 131 Degrees Farenheit)
• Power Consumption: < 100mA at 13.5V
• NMEA 2000 Certified
