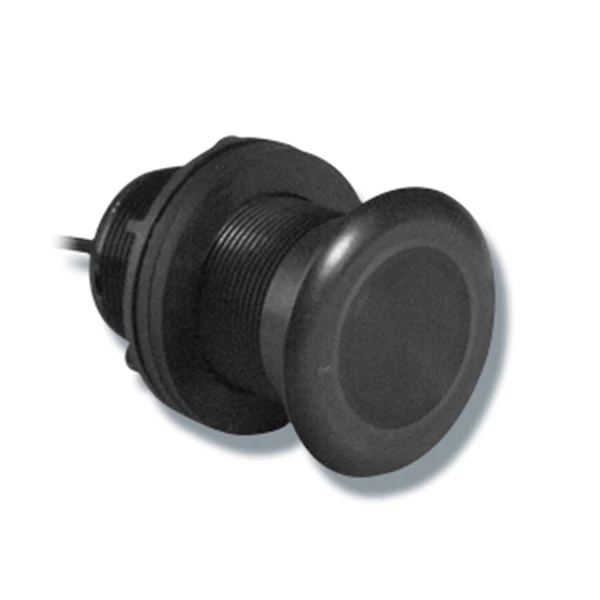

SIMRAD Transducers XSonic P319 Thru-Hull Dual Frequency Transducer

P319 is a nylon thru-hull Broadband transducer for smaller sportfishing and commercial vessels up to 25′ in length, fishing in depths of less than 3,000′.

The P319 is a 600 Watt thru-hull low-profile depth and temperature transducer with a plastic housing, that operates at 50kHz and 200kHz. It has a fixed (non-retractable) insert. The P319 is designed for installation only in the flat bottom of a boat. It does not have any built-in tilt for deadrise compensation.

Although most P319s are now made as a generic ‘mix and match’ (MM) transducer with a brand-specific adapter cable, this unit has a different internal circuitry and a permanent fixed 10M cable and cannot be used with MM adapters.

Note: The P319 is identical in performance to the B60 with a bronze housing (12°/20° tilt), the B117 with a bronze housing (0° tilt), and the SS60 with a stainless steel housing (12°/20° tilt).

Specifications

• Style: Thru-hull
• Cable Length: 30′
• Monitors: Depth and temperature
• Material: Plastic
• Connector: Blue 7-pin
• Hull Deadrise Angle: 0°-7°
• Transmit Power: 600W (RMS)
• Frequency: 50/200kHz
• Max. Depth: 800′-1200′ (50 kHz) / 400′-700′ (200kHz)
• Beamwidth: 45° (50kHz) / 12° (200kHz)
